Double Wall Stove Pipe
Clearances of 6" for walls, 8" for ceilings
Installation Instructions
6" clearance to combustible materials
Installation Instructions

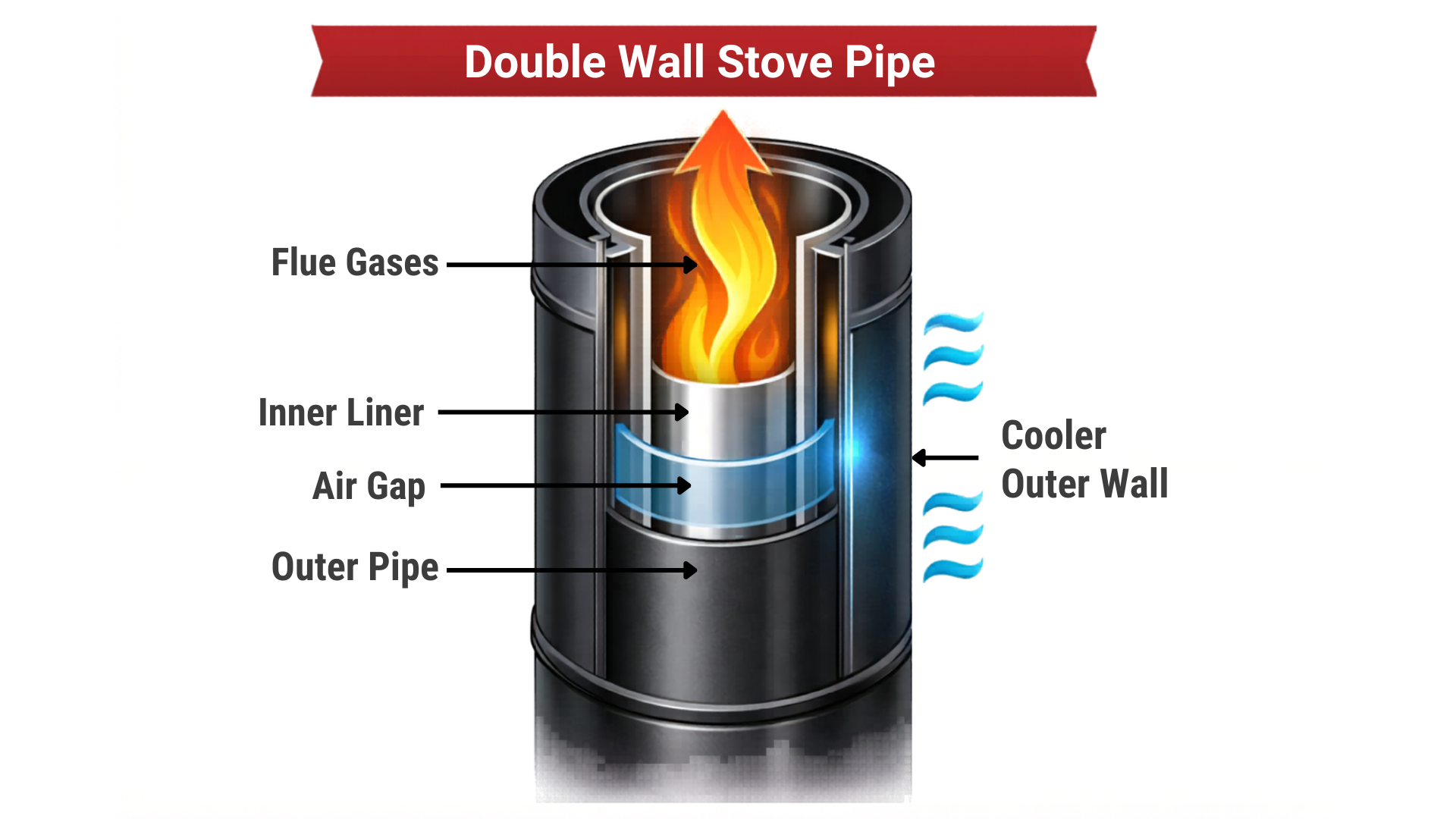

Double wall stove pipe is long lasting stove pipe that provides 1/4" airspace between inner and outer walls for superior insulation. Hotter flue temperature can be achieved with double wall stove pipe which helps minimized creosote build up in pipe as well as better wood stove efficiency. The Double Wall DVL Duravent stove pipe reduces the clearance for walls to 6" and ceilings to 8". Our Double Wall DSP Selkirk stove pipe reduces the stove pipe clearance to 6" for walls and ceilings.
The
single and double wall
stovepipe difference (click here)Other Questions About Stove Pipe
1. How do I determine
what size stove pipe I need?
2. What's
the difference between single wall and double wall stove
pipe?
3. Should stove
pipe be installed with the male end up or down?
4. What do gauges in stovepipe stand for?
A Few Words To The Wise
1. Stick with one brand of stovepipe for connecting woodstoves to chimney.
This ensures the most secure stovepipe connection. Learn
why a good stovepipe connection is so important.
2. For most stovepipes 3 screws are required to fit each
pipe connection tightly
3. New stovepipe and woodstove instalations may smoke a
little and emit an odor when first used. This is normal
curing of the paint on the pipe. Allow ventalation of an
open a window or door to allow the smoke and fumes to escape
during the beginning of your first wood burning stove fire.
